Hard Korr Remote Battery Monitor With High-Precision 100V/500A Shunt
SKU code: HKPBATTMON
This remote battery capacity monitor, also known as a coulometer, uses a 500A shunt (350A continuous) to return highly accurate readings of battery voltage, live current draw (A) and charge level (Ah and %).
Accurately monitor the condition of your batteries.
This remote battery capacity monitor, also known as a coulometer, uses a 500A shunt (350A continuous) to return highly accurate readings of battery voltage, live current draw (A) and charge level (Ah and %).
It includes a memory function, and is suitable for all common battery types including AGM, wet, gel, calcium and lithium.
The Hardkorr guarantee
All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 2-year Australian warranty and a 30-day money back guarantee.
Specifications
| Working voltage | 8-100V DC |
|---|---|
| Max. current | 500A peak / 350A continuous |
| Working current draw | 10-12mA |
| Backlight current draw | 100mA |
| Standby current draw | 0.5-0.6mA |
| Accuracy | ±1% |
| Operating temperature | -10°C to 65°C |
| Weight | 410g |
| Dimensions | 59mm ⌀ x 20mm |
| Cut-out size | 54.5mm |
| Certifications | CE, RoHS, C-Tick |

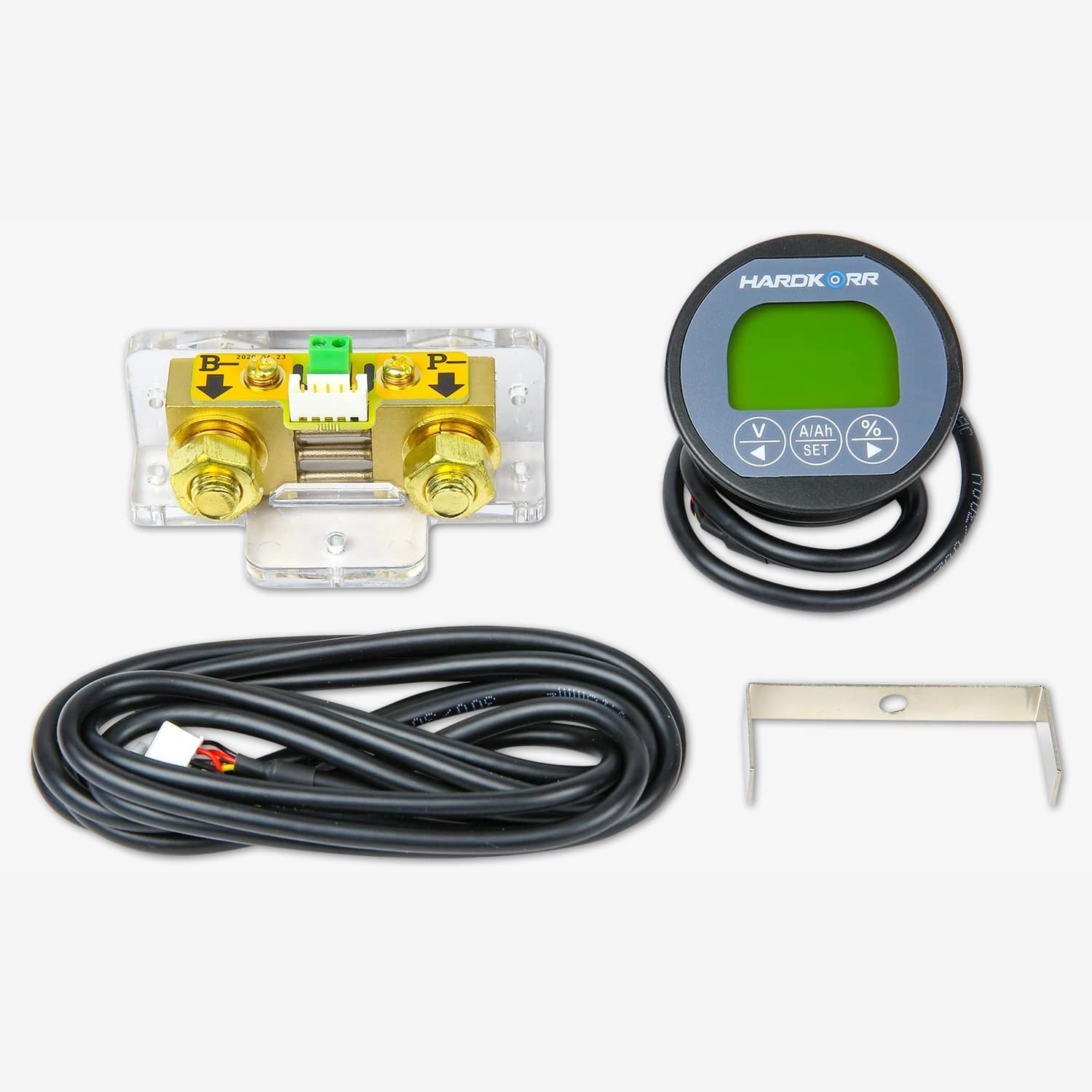

Pack Contents
| 1x | LCD display module |
|---|---|
| 1x | 100V/500A shunt |
| 1x | Shielded cable |
| 1x | Mounting bracket |
| SKU | HKPBATTMON |
| Model # | HKPBATTMON |
| Barcode # | 9350466001822 |
| Brand | Hard Korr |
| Shipping Weight | 0.4320kg |
| Shipping Width | 0.140m |
| Shipping Height | 0.050m |
| Shipping Length | 0.155m |
| Shipping Cubic | 0.001085000m3 |
