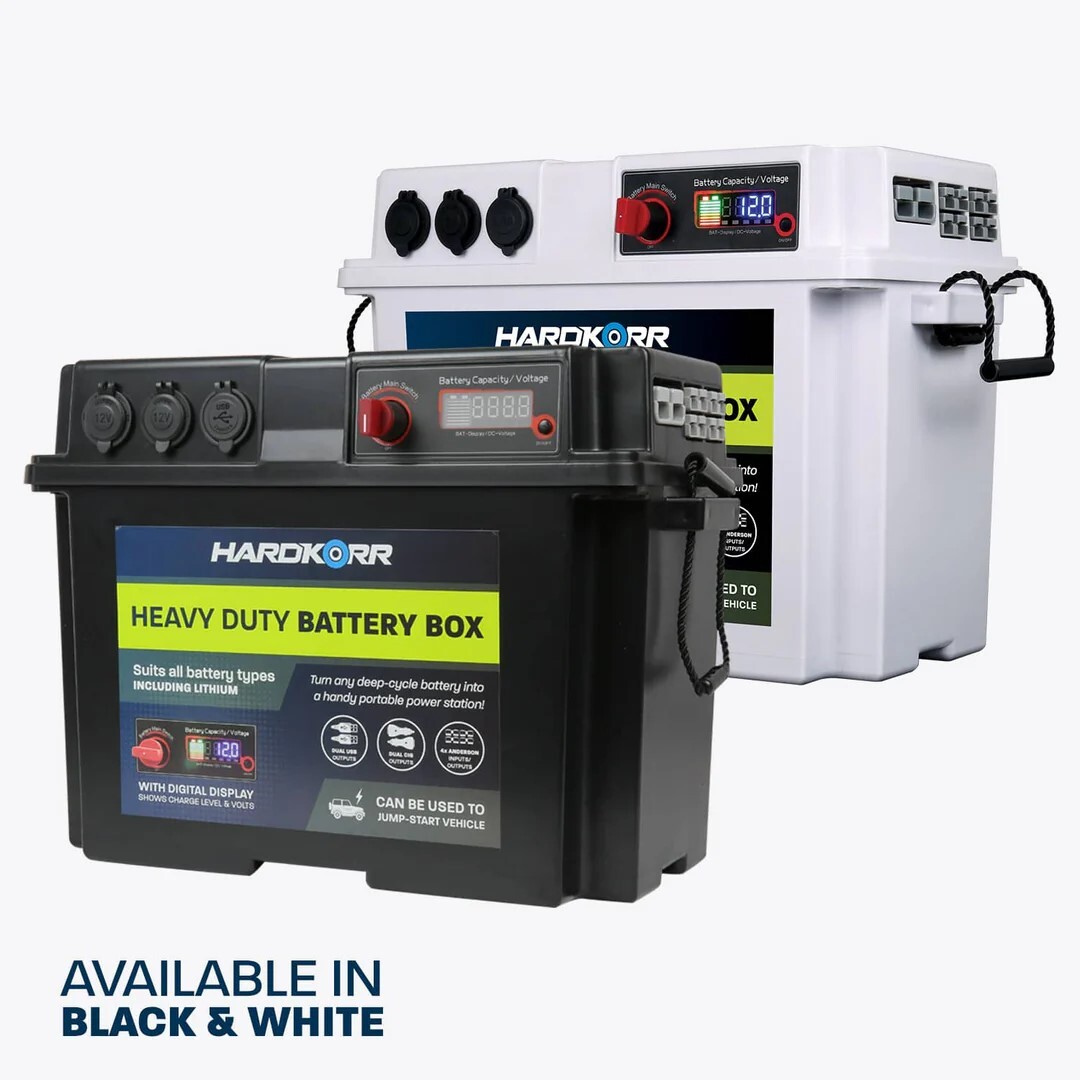

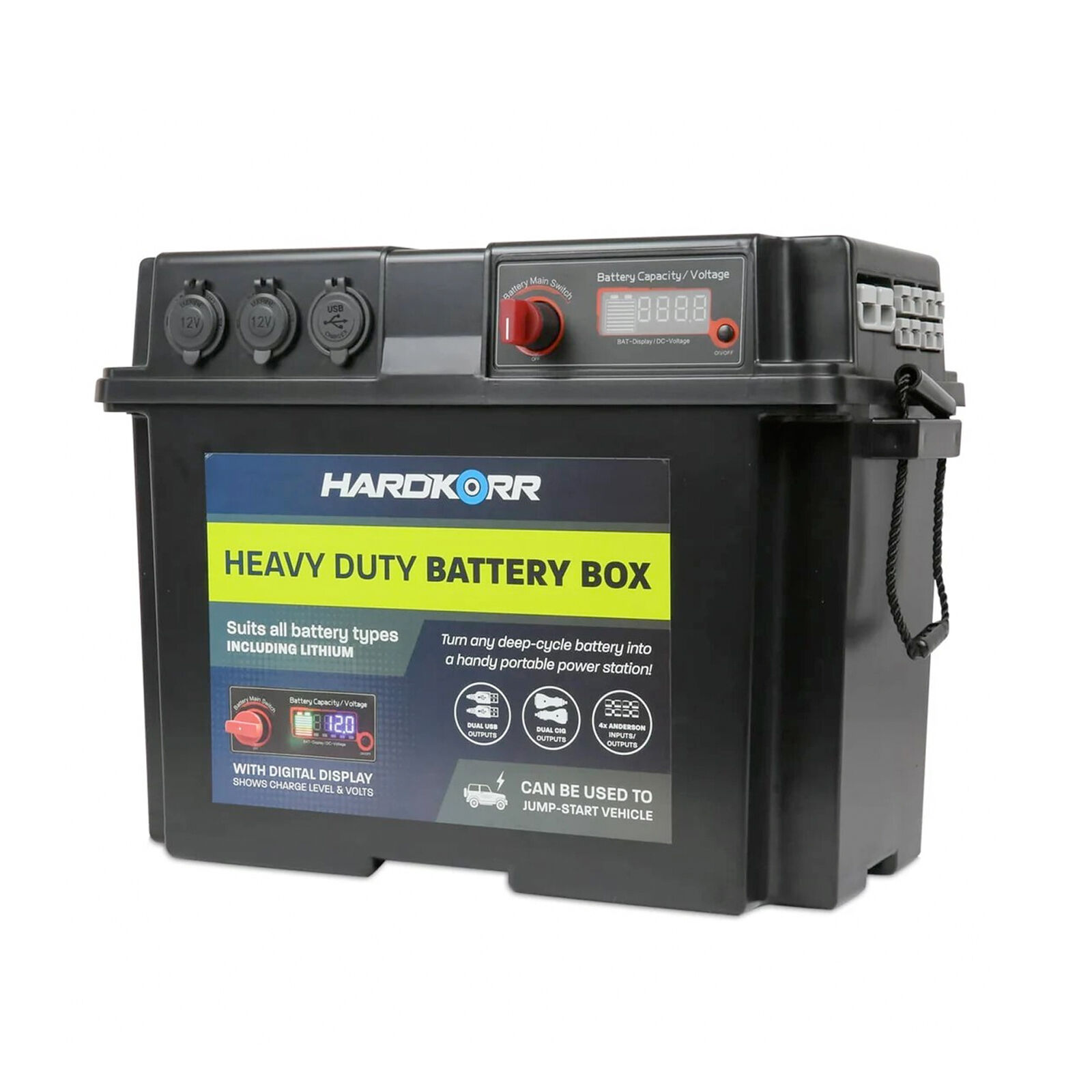

Our heavy duty battery box allows you to turn a regular deep-cycle battery into a convenient portable power station, or create a dual-battery setup using the optional VSR. It is suitable for all deep-cycle batteries up to 324mm (l) x 180mm (w) x 240mm (h) in size.



Our heavy duty battery box allows you to turn a regular deep-cycle battery into a convenient portable power station, or create a simple dual battery setup using the optional 50A Voltage-Sensitive Relay (VSR) and Dual Battery Wiring Kit. It is suitable for a range of battery types including AGM, Lithium, Wet, Gel and Calcium, and can handle batteries up to 324mm (l) x 180mm (w) x 240mm (h) in size.

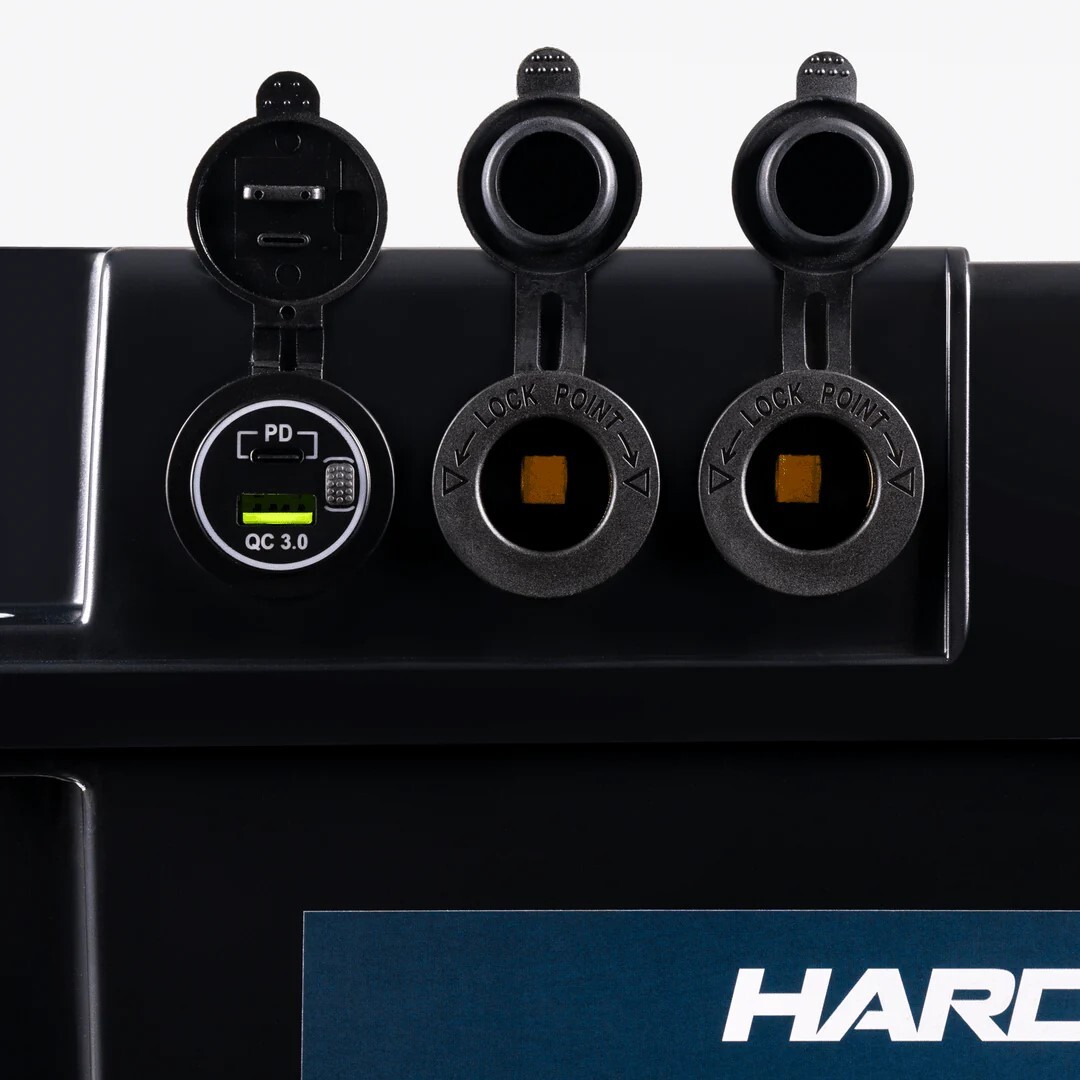

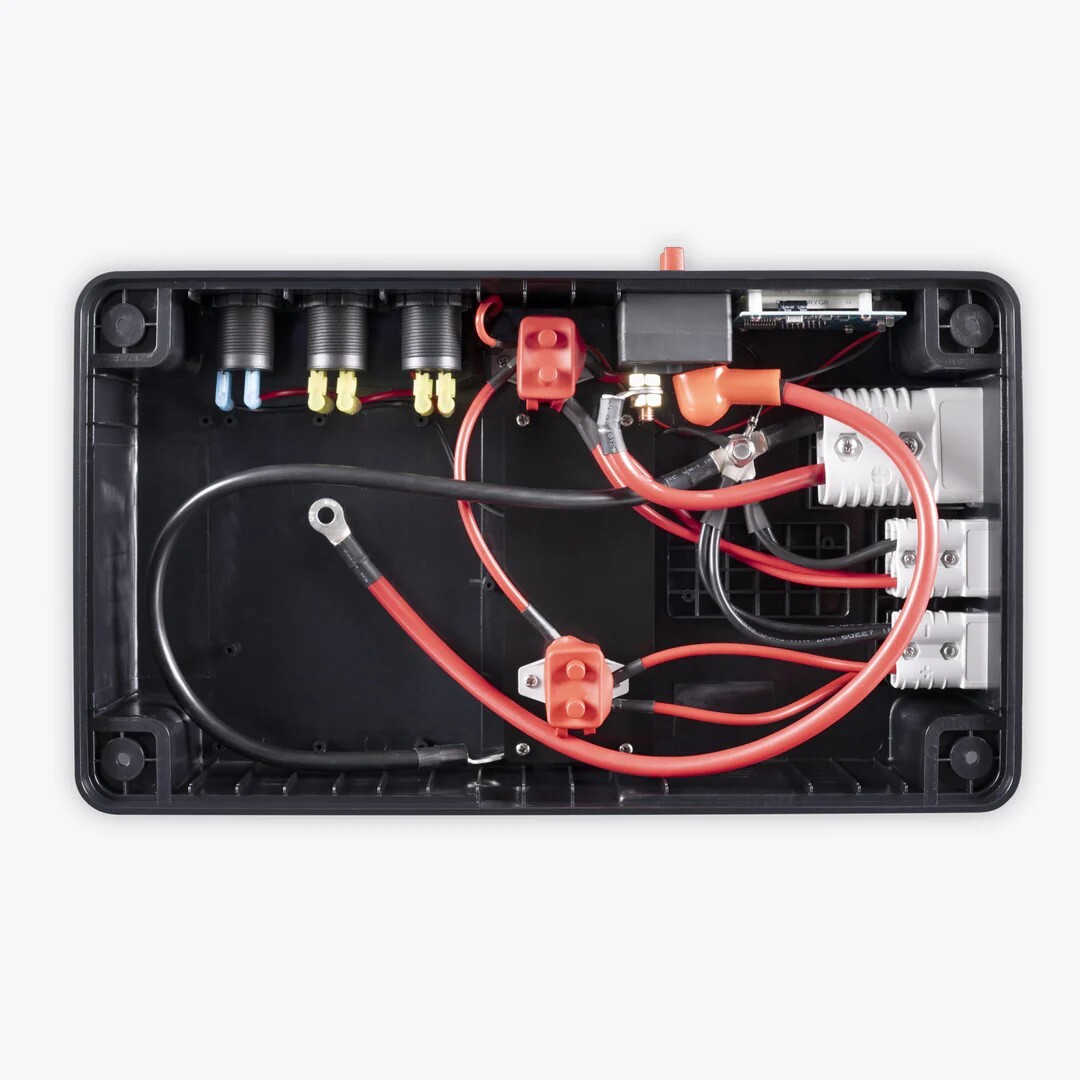

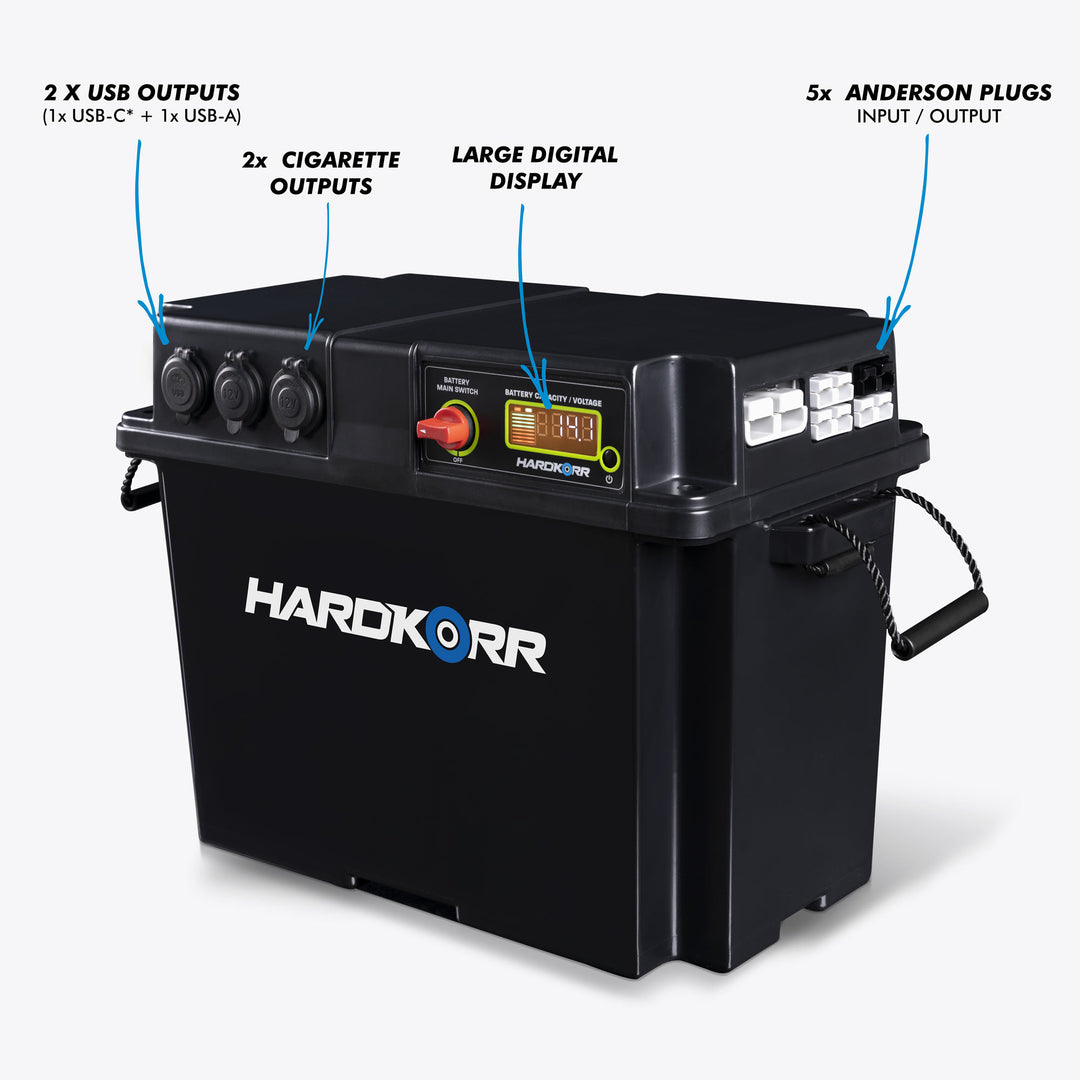

Constructed of durable ABS plastic and meeting the UL 94V-0 standard for flammability of plastic products, this battery box is a high-quality unit that will last for many years. It contains two 12v outlets with 10A fuses, a dual USB outlet, four 50A Anderson-style outlets that can be used as outputs or inputs, and a 175A Anderson-style outlet which can be used as a jump-starter. Unlike most other models on the market, all Anderson-style ports are recessed into the body to minimise the possibility of damage, and the internal cabling uses heavy-gauge wire and quality connectors.

The battery can be charged from a range of sources (including solar panels) by simply plugging into one of the 50A Anderson-style ports. The battery’s charge status and voltage can be easily seen via the large digital display.

KEY FEATURES

  • Constructed from UL 94V-0 compliant ABS plastic
  • Multiple port types allows your to connect a range of devices

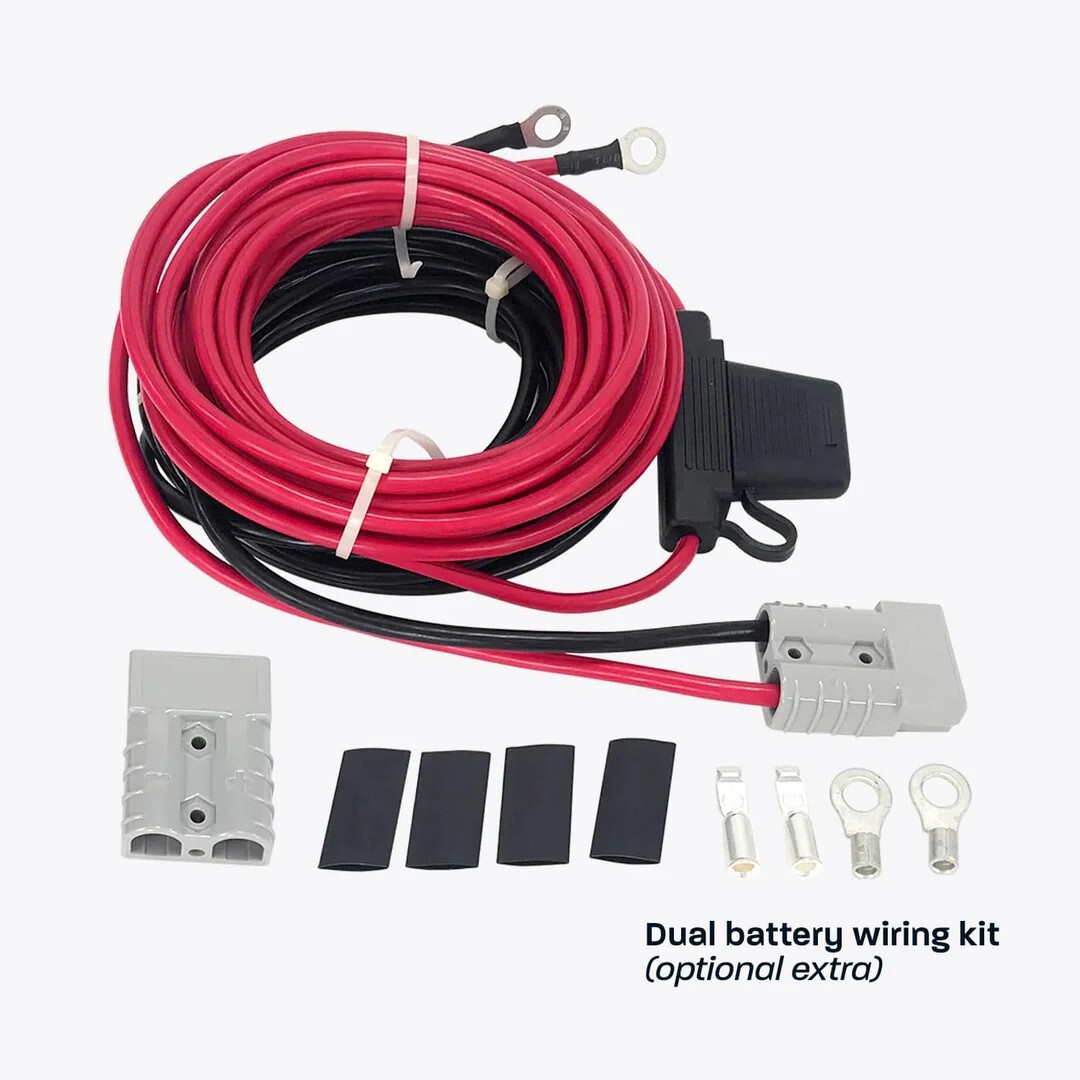

  • Easily connect a DC/DC charger or solar panel to charge the battery, or use the optional 50A Voltage-Sensitive Relay (VSR) and Dual Battery Wiring Kit to charge directly from crank battery

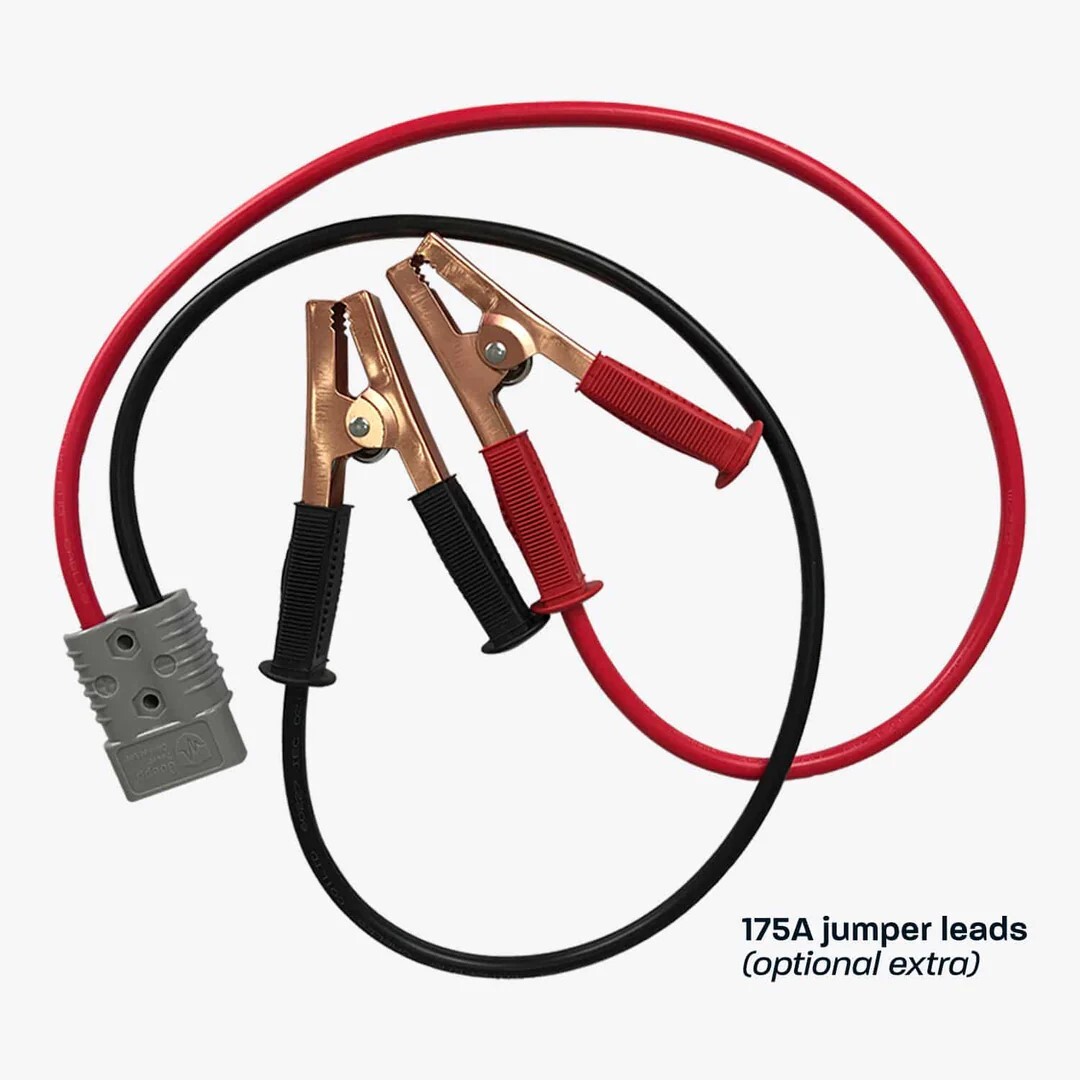

  • Can be used to jump start vehicles (175A Anderson jumper cable set is an optional extra)
  • All ports are recessed into the body to reduce likelihood of damage

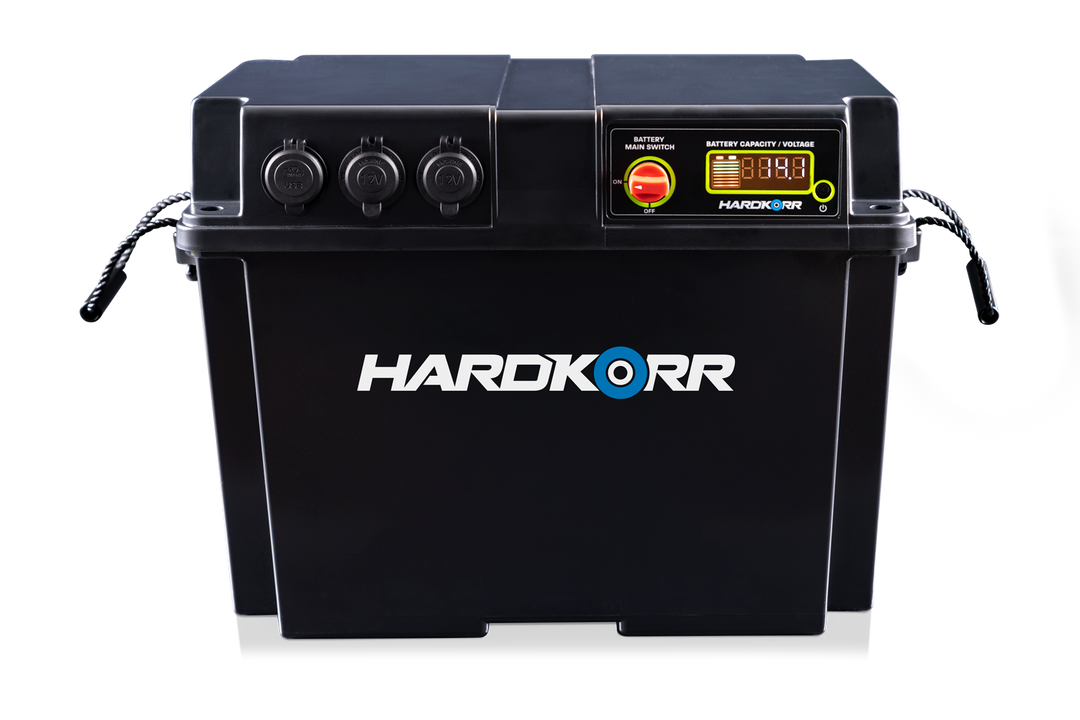

  • Easily see battery status with large digital display

EASY DUAL BATTERY SETUP

Using a battery box combined with a VSR is the easiest way to create a dual battery setup in your vehicle.

The VSR acts as an isolator, allowing the auxiliary battery (inside the box) to charge directly from the crank battery while the car is running. When the ignition is switched off and battery voltage drops below 12.7V, the VSR automatically cuts the link between the auxiliary and crank batteries.

Specifications

Materials ABS plastic (UL 94V-0 compliant)
Box dimensions 455mm (l) x 240mm (w) x 330mm (h)
Max. battery dimensions 324mm (l) x 180mm (w) x 240mm (h)
Max. battery weight 35.0kg
Suitable battery types Deep cycle (Lithium, AGM, Calcium, Wet, Gel)
Charge method via Anderson plug input or optional VSR
Ports 1 x dual USB output
2 x cigarette plug outputs
4 x 50A Anderson plug inputs/outputs
1 x 175A Anderson plug output
Operating temperature -10°C to 50°C
Weight 3.2kg

Pack Contents

1x Heavy duty battery box
1x set bolts, brackets & Allen keys
1x Strap
SKU HKPBATTBOXB
Model # HKPBATTBOXB
Barcode # 9350466001617
Brand Hard Korr
Shipping Weight 3.4000kg
Shipping Width 0.330m
Shipping Height 0.240m
Shipping Length 0.455m
Shipping Cubic 0.036036000m3
