Info

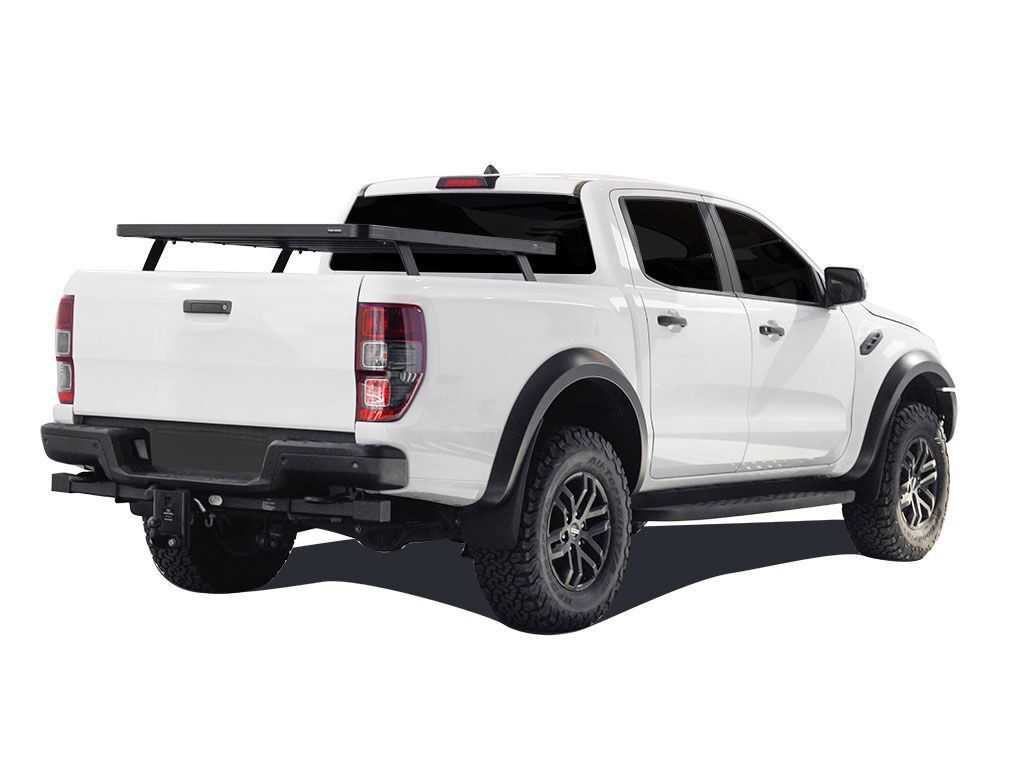

This kit creates a full-size rack that sits above your Pickup Truck's load bed when fitted with a Roll Top Cover. This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1156mm), 2 Tracks and 4 Pickup Roll Top Leg Mounts that fit into the Tracks.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Drilling may be required to mount the track to the bed of your truck. See the track and leg installation instructions in the INSTALL tab for further details.

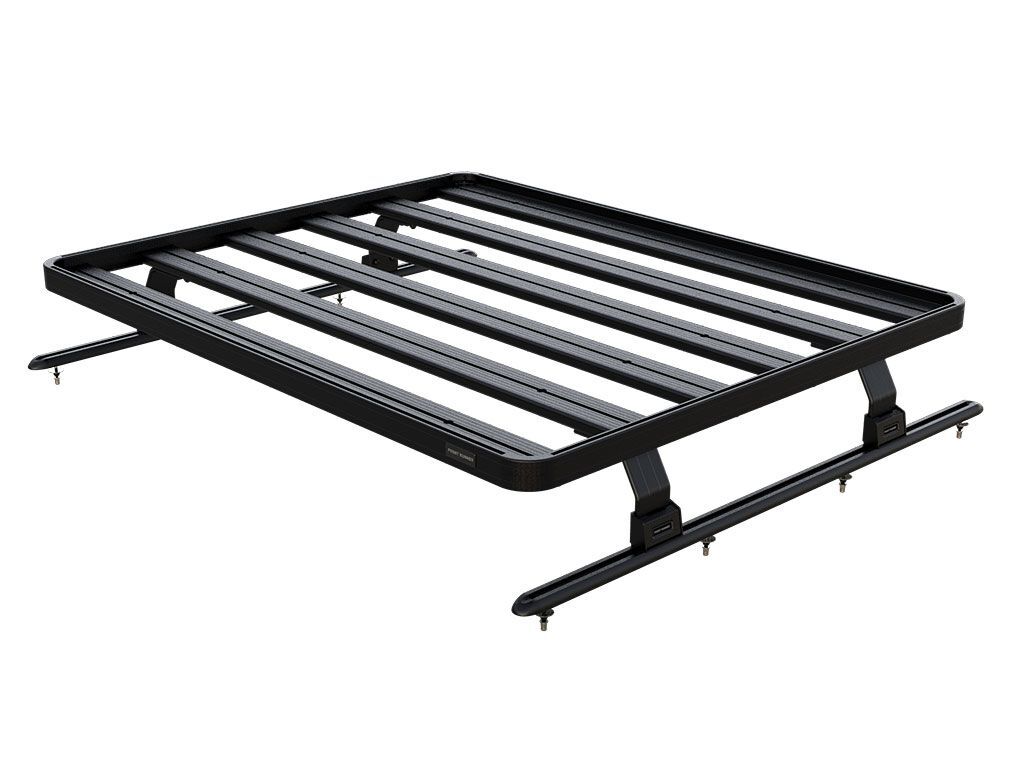

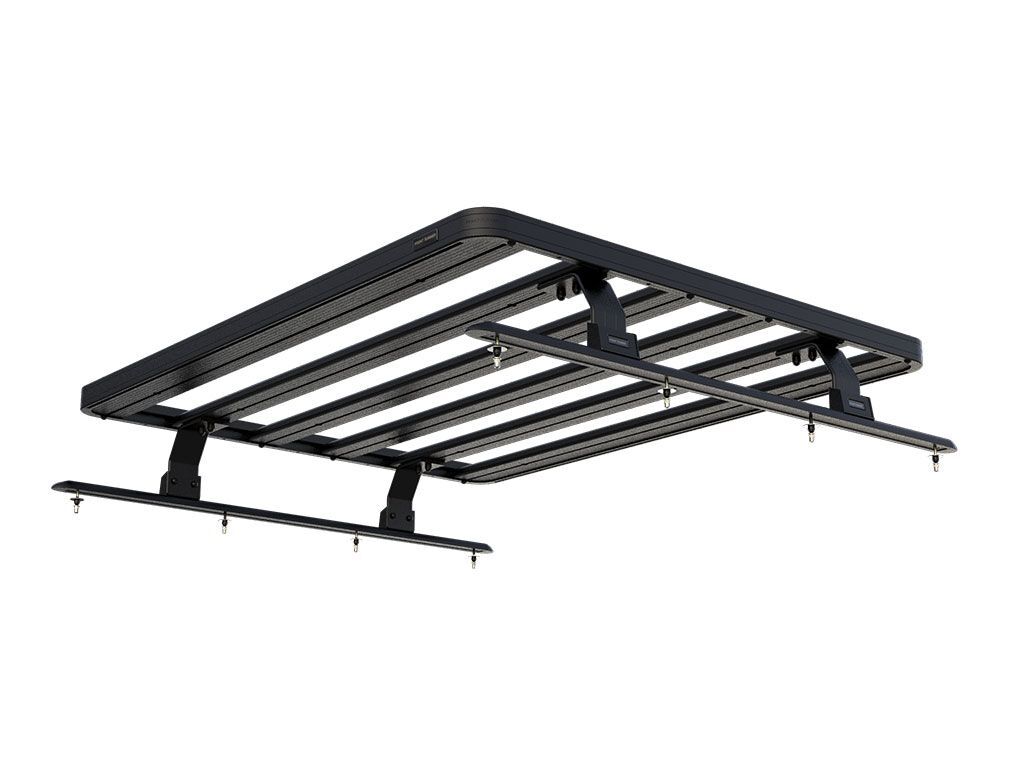

KRRT014T - Pickup Roll Top with No OEM Track Slimline II Load Bed Rack Kit / 1425(W) x 1156(L) - by Front Runner


Consisting of:

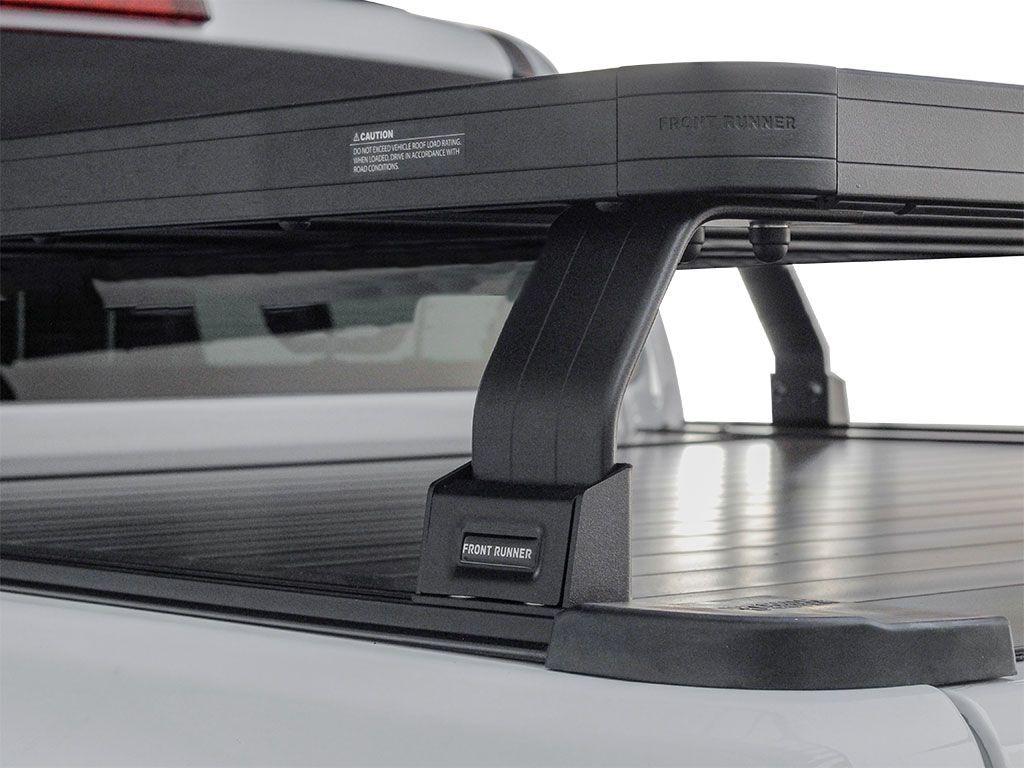

2 x LASS028 - Pickup Roll Top Leg Mount - by Front Runner

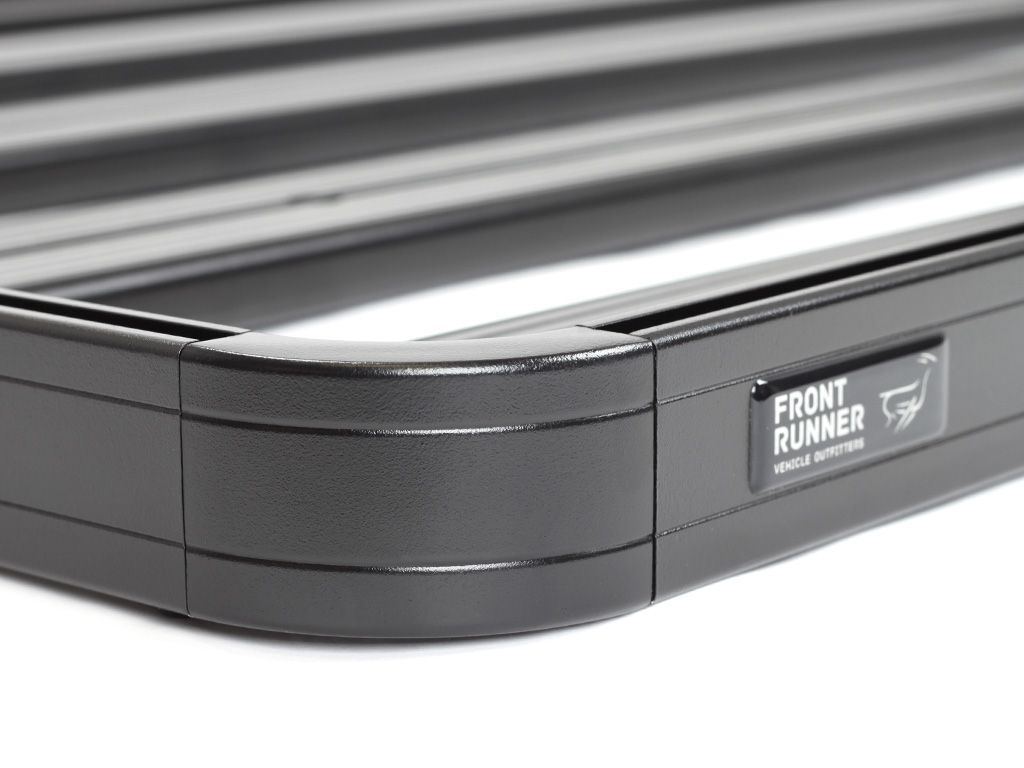

1 x RRSTJ06 - Slimline II Tray - 1425mm(W) x 1156mm(L) - by Front Runner
1 x TRCA003 - Canopy Tracks / 1150mm(L) - by Front Runner

 Material used:

Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel

Approximate Installed Weight 24kg (53lbs)

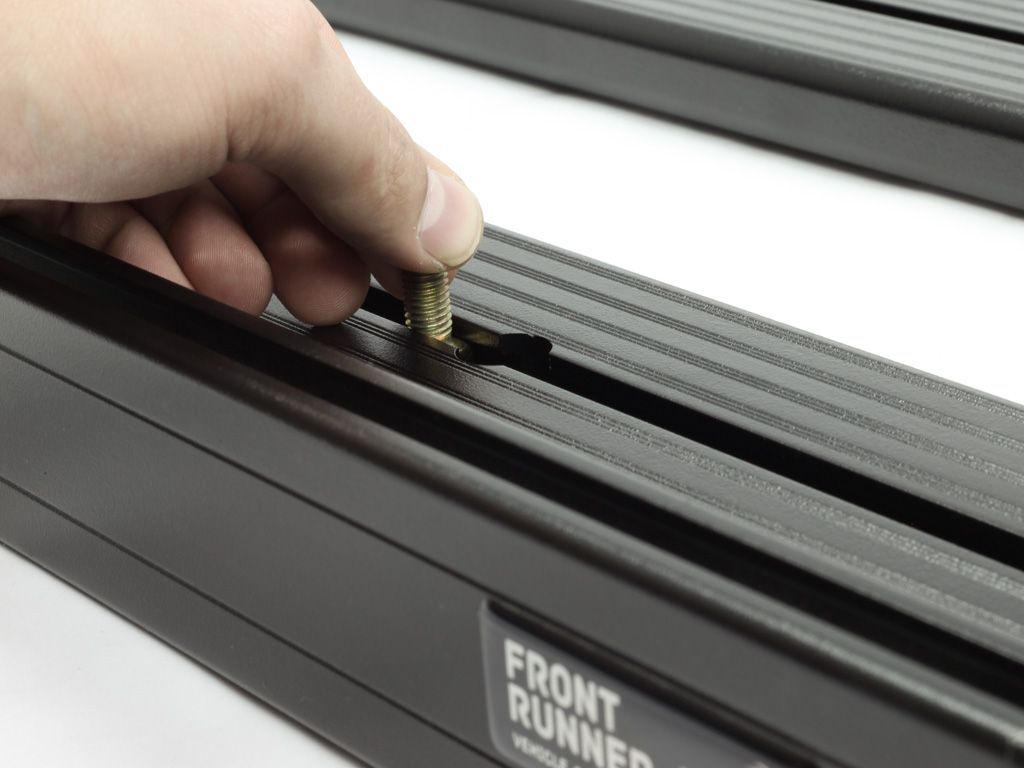

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

 Shipping Dimensions:

Width 455mm (18")
Length 1610mm (63")
Height 265mm (10")


Shipping Weight:

Weight 28.3kg (62.1lbs)
