The Hardkorr guarantee

All Hardkorr products are manufactured using the highest quality materials. We are confident that they are the most durable in the market and will give you many years of reliable service. We stand behind this product with a comprehensive 3-year Australian warranty and a 30-day money back guarantee.

That’s not a flood beam… THIS is a flood beam.

Hardkorr’s new XDW Series work lights are characterised by clean, bezel-free lines and a sleek, blacked-out appearance. Their most distinctive feature, however, is the reflectors. Utilising the latest engineering methods and manufacturing techniques, these reflectors are precisely calibrated and manufactured to nanometre precision to create incredible beam patterns that simply weren’t possible in the past. We call this our Hyperflood™ technology.

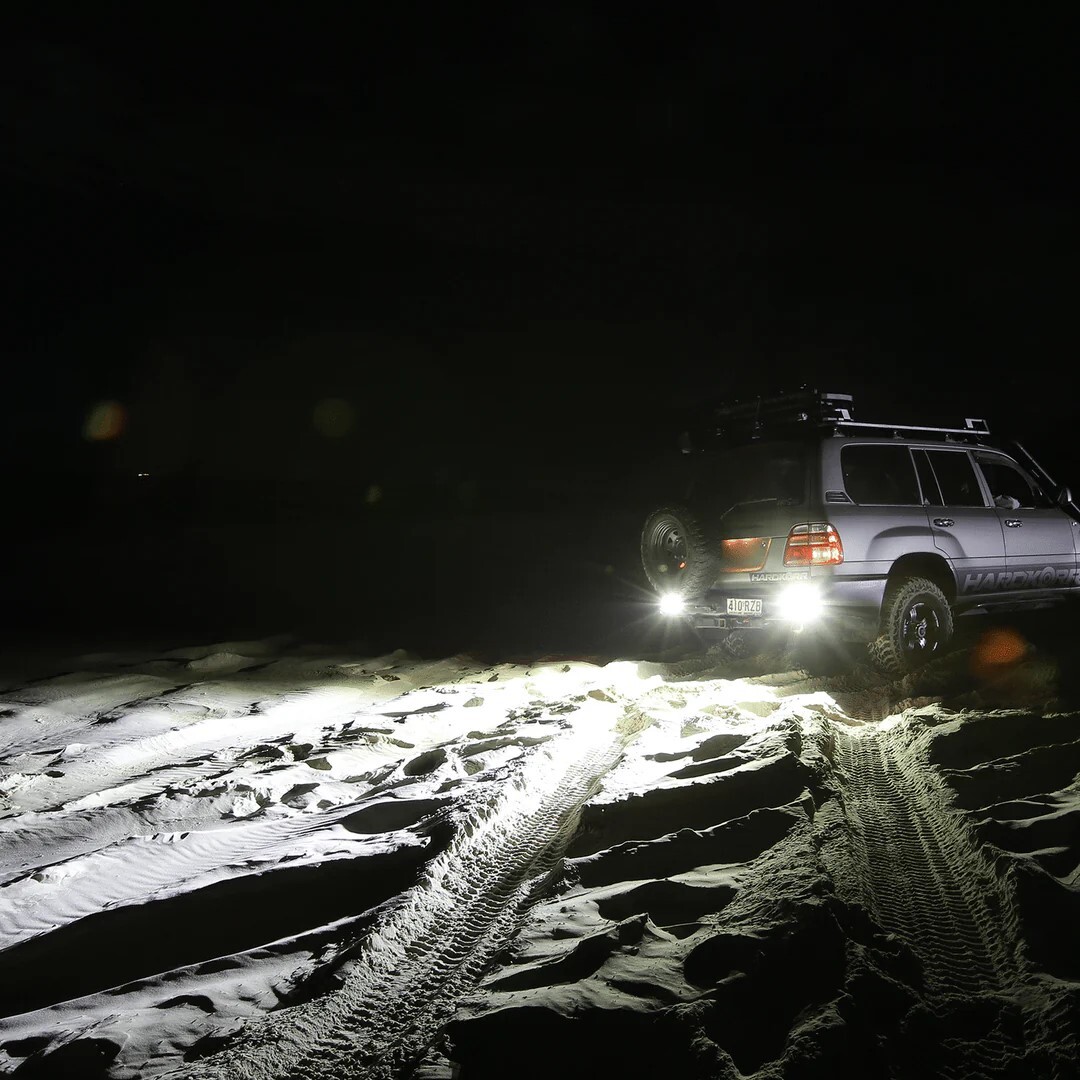

Showcasing this new reflector technology combined with latest-generation 5W OSRAM LED chips, these XDW Series slimline flush mount work lights shine an incredible 180 degree beam up to 76m from the light source. They are often mounted inside front bars, rear bars or canopies to provide auxiliary lighting for driving, reversing or working around the vehicle.

Having downward-facing LED chips means there is less direct glare from the lights. This is handy for when the lights are mounted in places where they may otherwise interfere with the vision of other drivers.

New Hyperflood™ light beam.

The width of the flood beam on these lights has to be seen to be believed.



Genuine parts, precision optics.

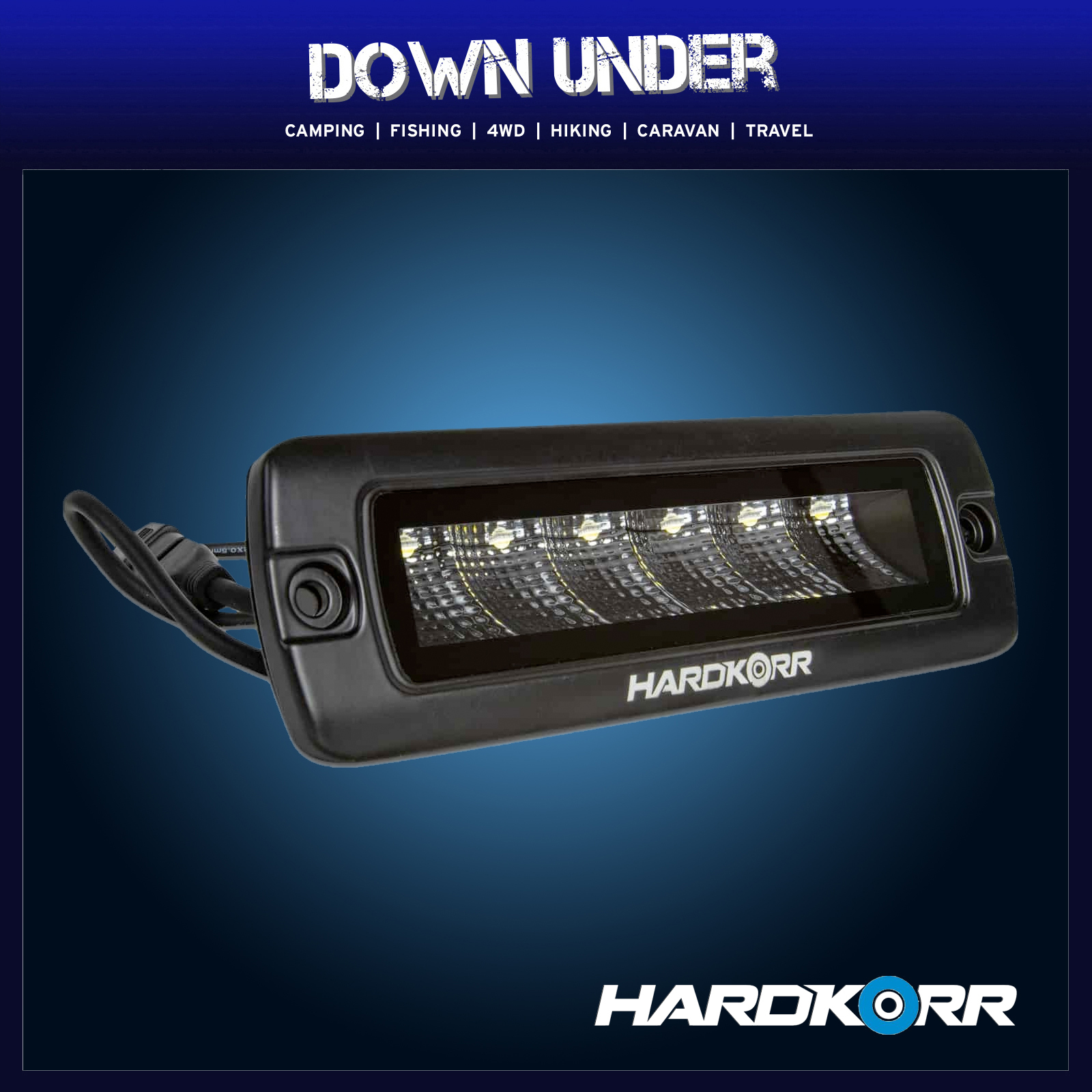

Hardkorr’s XDW76FM work lights are made using genuine top-grade OSRAM® LED chips sourced from authorised agents, to ensure even light throw, correct colour rendering and long service life. These chips are matched with custom engineered reflectors that are manufactured to nanometre precision, and secured within high-quality aluminium housing which is designed to effectively dissipate heat and protect the sensitive components within.

This attention to detail ensures that every unit we manufacture gives consistent performance, and helps us fulfil our ambition to be the world’s most trusted manufacturer of LED lighting.

Specifications

Materials	6063 aluminium housing Lexan® polycarbonate lens
LED type	6 x 5W OSRAM
Output	3,459 raw lumens 1,943 effective lumens
Distance	1 lux @ 76m
Beam type	Hyperflood™
Dimensions	157mm (w) x 43.7mm (h) x 60mm (d)
Ingress protection	IP67
Working voltage	9-33V DC
Current draw	2.64A @ 12V / 1.33A @ 24V
Colour temperature	5700K
Weight	0.5kg
LED Lifespan	50,000+ hours
Certifications	CE, RoHS, C-Tick

Pack Contents

1x	30W flush-mount work light with Deutsch lead
1x	Deutsch to DC adaptor
1x	Stainless steel fittings

Dimensions
